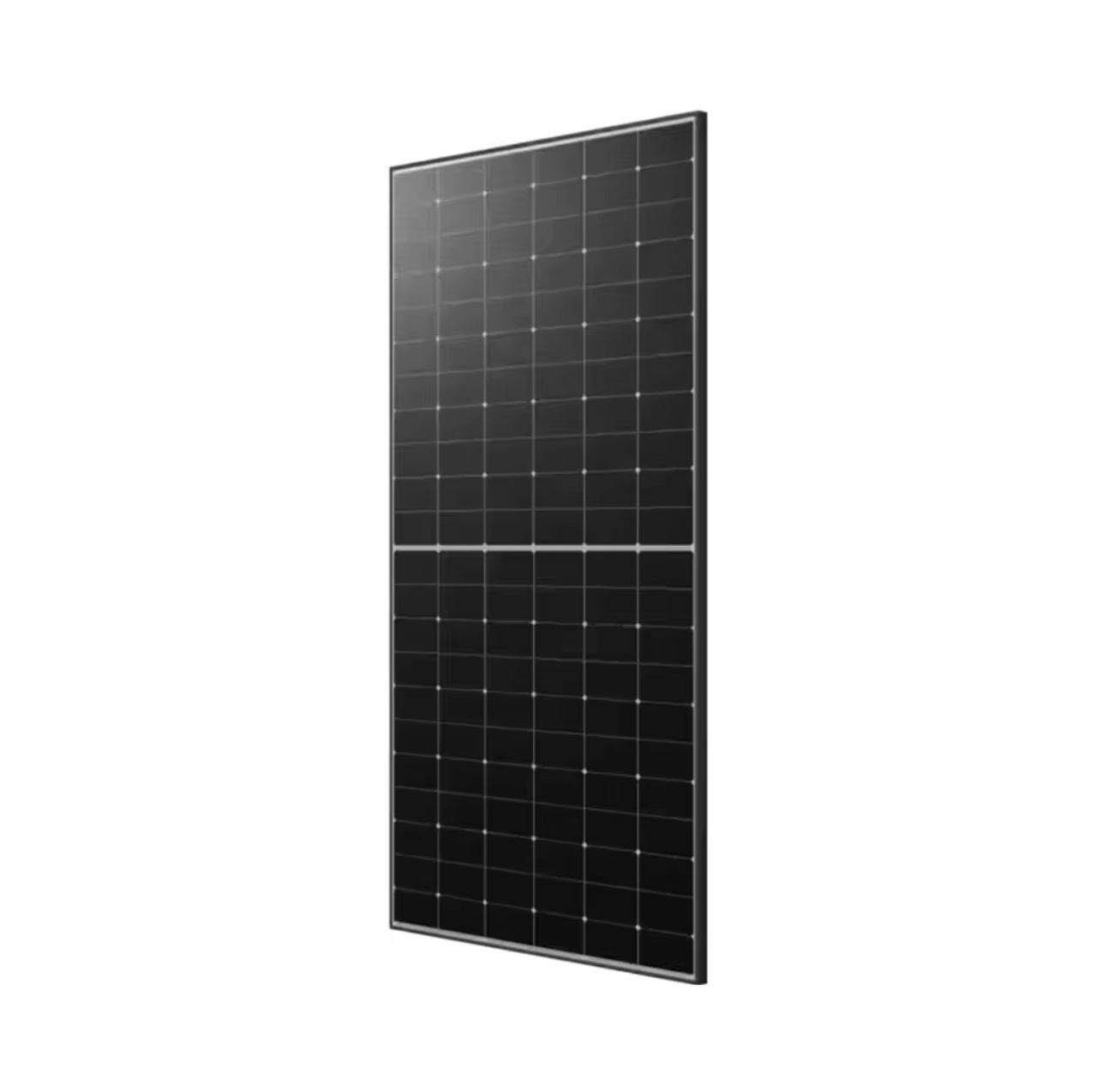

550W Jinko Solar Panel Negotiable

Maximum Power (Pmax): 550Wp (at Standard

Test Conditions - STC)

• Maximum Power Voltage (VMP): 40.90V (at STC)

• Maximum Power Current (IMP): 13.45A (at STC)

• Open-circuit Voltage (VOC): 49.62V (at STC)

• Short-circuit Current (ISC): 14.03A (at STC)

• Module Efficiency (at STC): 21.29%

• Operating Temperature Range: -40°C to +85°C

• Maximum System Voltage: 1000/1500VDC (IEC)

• Maximum Series Fuse Rating: 25A

• Power Tolerance: 0~+3%

• Temperature Coefficients:

• Pmax: -0.35%/°C

• VOC: -0.28%/°C

• ISC: -0.048%/°C

• Weight: 28kg

• Dimensions: 2278 x 1134 x 35mm (89.69 x 44.65 x

1.38 inch)

• Cell Type: P-type monocrystalline

• Number of Cells: 144 (6x24)

• Glass: 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass

• Frame: Anodized Aluminum Alloy

• Junction Box: IP68 Rated

• Output Cables: TUV 1x4.0mm2 (+): 400mm, (-):

200mm or Customized Length.

Feature

Efficient Charging : Charges under any weather
