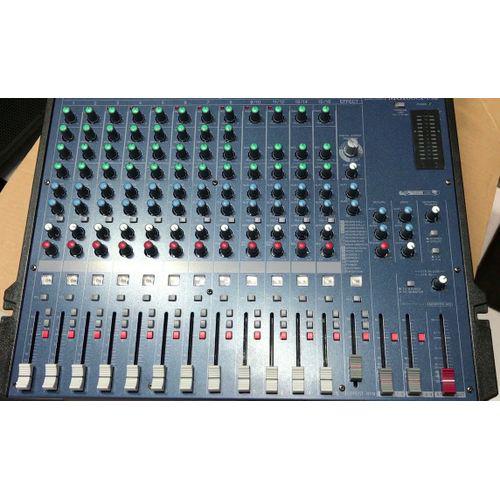

16 Channel Proffessional Console Mixer With Dsp Effect Negotiable

Yamaha's MG series offers a mixing console that will give you the capacity, control, and performance you deserve. All models are remarkably compact and lightweight for superior handling and portability, but absolutely no compromises have been made in terms of features, performance, or durability. The MG mixers offer an extraordinary blend of technology: some inherited from professional Yamaha mixing consoles you're likely to see in distinguished halls throughout the world, and some developed specifically to deliver optimum performance in the MG-console format. In either case these performance-packed Yamaha mixers are founded on a world-spanning network of human and technological resources that crystallize to deliver features that really matter, and sound that is undeniably superior.

Whether you have a mixing application that involves only a few channels, or up to 32 inputs with substantial signal routing versatility, Yamaha's MG series offers a mixing console that will give you the capacity, control, and performance you deserve. All models are remarkably compact and lightweight for superior handling and portability, but absolutely no compromises have been made in terms of features, performance, or durability. The MG mixers offer an extraordinary blend of technology: some inherited from professional Yamaha mixing consoles you're likely to see in distinguished halls throughout the world, and some developed specifically to deliver optimum performance in the MG-console format. In either case these performance-packed Yamaha mixers are founded on a world-spanning network of human and technological resources that crystallize to deliver features that really matter, and sound that is undeniably superior.

FEATURES

Built-in SPX Digital Effects

Easy operation

Lightweight, portable design

Versatile connectivity and pro-class connectors

Built-in channel compressors

High-performance microphone preamplifiers with switchable phantom power

3-band Channel EQ and high-pass filters

Aux/Effect sends

Smooth 60mm faders and illuminated channel ON switch

Bright meters for visual level monitoring

SPECIFICATIONS

Mic/Line inputs: 10

Line inputs: 8 mono + 4 stereo

Mixer input channels: 16

Group busses: 4

AUX busses: 3

including 1x Effect send

Main busses: Stereo

Total harmonic distortion (THD+N): Less than 0.1%, 20Hz-20kHz

Frequency response: 0, +1, -3dB, 20Hz-20kHz

Equivalent input noise (EIN): -128dBu

Residual output noise: -98dBu

Crosstalk (1kHz): -70dB

Power supply adaptor: PA-30 AC adaptor (AC35VCT, 1.4A); 100V, 120V, 220V, 230V or 240V, 50/60Hz

Power consumption: 35W

Dimensions: 478x105x496 mm

Net weight: 5.5 kg

Accessories: Owners manual, AC adaptor

Key Features

Mic/Line inputs: 10

Line inputs: 8 mono + 4 stereo

Mixer input channels: 16

Group busses: 4

AUX busses: 3

Main busses: Stereo

Total harmonic distortion (THD+N): Less than 0.1%, 20Hz-20kHz

Frequency response: 0, +1, -3dB, 20Hz-20kHz

Equivalent input noise (EIN): -128dBu

Residual output noise: -98dBu

Crosstalk (1kHz): -70dB

Power supply adaptor: PA-30 AC adaptor (AC35VCT, 1.4A); 100V, 120V, 220V, 230V or 240V, 50/60Hz

Power consumption: 35W

Specifications

SKU: GE779EL00OZAINAFAMZ

Product Line: Eccentric electronics store

Model: Mg166cx

Weight (kg): 11

Color: Grey, blue

Main Material: Metal, Fibre plastic.
