Midas M32 Live Unpowered Mixer (M32R Negotiable

₦6,400,000

  Imo State.
 new     Interstate Sale Available
( 0 Bid )

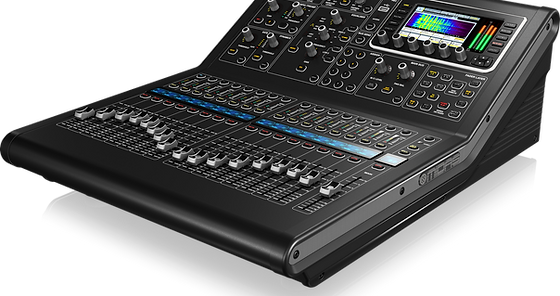

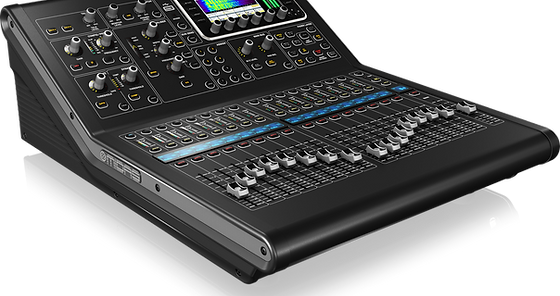

Midas M32 Live Unpowered Mixer (M32R



Description

Features

Digital Console for Live and Studio with 40 Input-Channels, 16 Midas PRO Microphone Preamplifiers and 25 Mix Buses

    • Live performance and studio recording digital console with up to 40 simultaneous input channels

    • 16 award-winning Midas PRO microphone preamplifiers

    • 25 time-aligned and phase-coherent mix buses

    • AES50 networking allows up to 96 inputs and 96 outputs

    • 192 kHz ADC and DAC converters for outstanding audio performance

    • Industry-leading design by Bentley* Motors Designer

    • High-performance aluminium and high-impact steel structure

    • Rack mount brackets included for ultimate flexibility

    • 40 bit floating point digital signal processing

    • 8 DCA and 6 mute groups

    • 8 digital signal processing effects engines

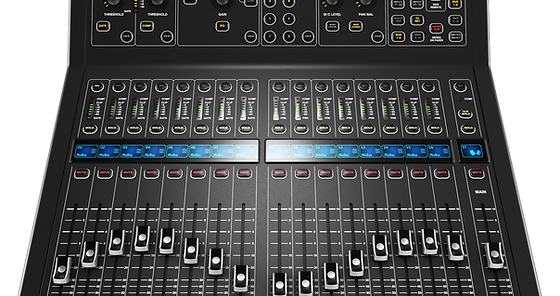

    • 17 Midas PRO motorised 100 mm faders

    • Daylight viewable 5" full colour TFT display screen

    • 32 x 32 channel USB 2.0 audio interface

    • DAW remote control emulations of Mackie Control* and HUI* protocols

    • Optional wireless remote control with Midas Apps for iPhone* and iPad*

    • Auto-ranging universal switch-mode power supply

  • Processing

    Input Processing Channels

    32 Input Channels, 8 Aux Channels, 8 FX Return Channels

    Output Processing Channels

    16-Aug

    16 aux buses, 6 matrices, main LRC

    100

    Internal Effects Engines (True Stereo / Mono)

    16-Aug

    Internal Show Automation (structured Cues / Snippets)

    500 / 100

    Internal Total Recall Scenes (incl. Preamplifiers and Faders)

    100

    Signal Processing

    40-Bit Floating Point

    A/D Conversion (8-channel, 96 kHz ready)

    24-Bit, 114 dB Dynamic Range, A-weighted

    D/A Conversion (stereo, 96 kHz ready)

    24-Bit, 120 dB Dynamic Range, A-weighted

    I/O Latency (Console Input to Output)

    0.8 ms

    Network Latency (Stage Box In > Console > Stage Box Out)

    1.1 ms

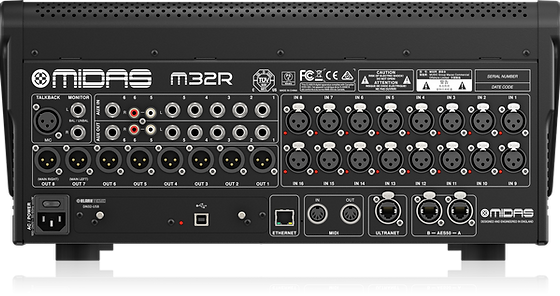

    Connectors

    MIDAS PRO Series Microphone Preamplifier (XLR)

    16

    Talkback Microphone Input (XLR)

    1

    RCA Inputs / Outputs

    2-Feb

    XLR Outputs

    8

    Monitoring Outputs (XLR / ¼" TRS Balanced)

    2-Feb

    Aux Inputs/Outputs (¼" TRS Balanced)

    6-Jun

    Phones Output (¼" TRS)

    1 (Stereo)

    AES50 Ports (KLARK TEKNIK SuperMAC)

    2

    Expansion Card Interface

    32 Channel Audio Input / Output

    ULTRANET P-16 Connector (No Power Supplied)

    1

    MIDI Inputs / Outputs

    1-Jan

    USB Type A (Audio and Data Import / Export)

    1

    USB Type B, rear panel, for remote control

    1

    Ethernet, RJ45, rear panel, for remote control

    1

    Mic Input Characteristics

    Design

    MIDAS PRO Series

    THD+N (0 dB gain, 0 dBu output)

    <0.01% unweighted

    THD+N (+40 dB gain, 0 dBu to +20 dBu output)

    <0.03% unweighted

    Input Impedance (Unbalanced / Balanced)

    10 kO / 10 kO

    Non-Clip Maximum Input Level

    +23 dBu

    Phantom Power (Switchable per Input)

    +48 V

    Equivalent Input Noise @ +45 dB gain (150 ? source)

    -125 dB 22 Hz-22 kHz, unweighted

    CMRR @ Unity Gain (Typical)

    >70 dB

    CMRR @ 40 dB Gain (Typical)

    >90 dB

    Input/Output Characteristics

    Frequency Response @ 48 kHz Sample Rate

    0 dB to -1 dB 20 Hz-20 kHz

    Dynamic Range, Analogue In to Analogue Out

    106 dB 22 Hz-22 kHz, unweighted

    A/D Dynamic Range, Preamplifier and Converter (Typical)

    109 dB 22 Hz-22 kHz, unweighted

    D/A Dynamic Range, Converter and Output (Typical)

    109 dB 22 Hz-22 kHz, unweighted

    Crosstalk Rejection @ 1 kHz, Adjacent Channels

    100 dB

    Output level, XLR Connectors (Nominal / Maximum)

    +4 dBu / +21 dBu

    Output Impedance, XLR Connectors (Unbalanced / Balanced)

    50 O / 50 O

    Input impedance, TRS Connectors (Unbalanced / Balanced)

    20 kO / 40 kO

    Non-Clip Maximum Input Level, TRS Connectors

    +21 dBu

    Output Level, TRS (Nominal / Maximum)

    +4 dBu / +21 dBu

    Output Impedance, TRS (Unbalanced / Balanced)

    50 O / 50 O

    Phones Output Impedance / Maximum output Level

    40 O / +21 dBu (Stereo)

    Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain

    -85 dBu 22 Hz-22 kHz, unweighted

    Residual Noise Level, Out 1-16 XLR Connectors, Muted

    -88 dBu 22 Hz-22 kHz, unweighted

    Residual Noise Level, TRS and Monitor out XLR Connectors

    -83 dBu 22 Hz-22 kHz, unweighted

    Display

    Main Screen

    5" TFT LCD, 800 x 480 Resolution, 262k Colours

    Channel LCD Screen

    128 x 64 LCD with RGB Colour Backlight

    Main Meter

    18 Segment (-45 dB to Clip)

    Power

    Switch-Mode Power Supply

    Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%

    Power Consumption

    70 W

    Physical

    Standard Operating Temperature Range

    5°C – 40°C (41°F – 104°F)

    Dimensions

    478 x 617 x 208 mm (18.8 x 24.3 x 8.2")

    Weight

    14.3 kg (31.5 lbs)
