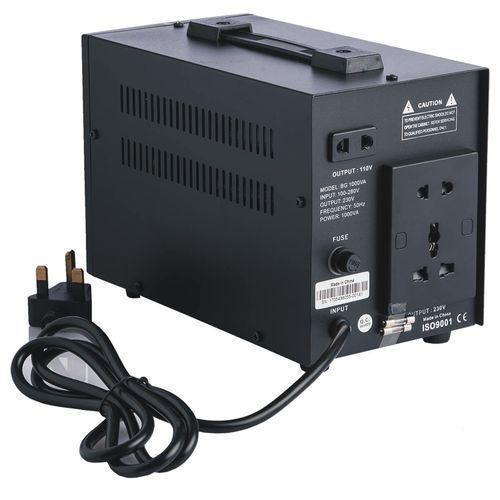

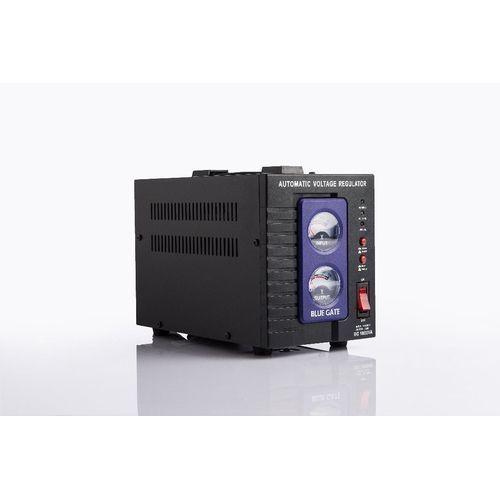

Blue Gate 100% Genuine 1kva Relay Automatic Voltage Stabilizer (1000VA) Negotiable

This AVR-series has adopted the advanced control technology made with reliable components. It is a new type of AC automatic regulator with fully automatic control system. It has the features of wide input voltage range from 100v to 260v, high reliability, more stabilized output voltage, energy saving, etc.

It can supply stabilized power to lights, TVs, small refrigerators, computers and duplicating machines and other household equipment; Schools, Offices, Hotels, etc.

Input And Output Display

Over Voltage Protection

Over Load Protection

Low Output Voltage Protection

High Output Voltage Protection

High Temperature Protection

TECHNICAL DETAILS (1000VA)

INPUT

Phase: Single phase

Voltage Range: 100VAC-280VAC

OUTPUT

Voltage Range: 200-240V (Empty load)

Frequency: 50/60Hz

Over voltage protection: 250V+5V (Over voltage indicator lights without output

Under-voltage protection: 100V+5V (Under-voltage indicator lights without output)(not applicable to super low options)

SYSTEM

Efficiency: 95%

Display Mode: LED indicator light; Pointer voltmeter/LCD display

Input/Output setting: Plug/Socket

Wave Distortion: No additional waveform distortion

Insulation Resistance: >2M

Dielectric Strength: Low frequency sine voltage 1500V for 1 minute (without phenomena of breakdown and flashover)

Ambient Temperature: -10 degree C - 40 degree C

Relative Humidity: 95%

Working: continuous

Key Features

1000VA or 1kva Power

Wide input voltage

Over-voltage, Low –voltage, delayed output, short circuit and High temperature protection

Classic series, EI transformer, relay type

Input and output voltage meter display

Efficiency

Spare uses

Specifications

SKU: BL670EL1EPRUHNAFAMZ

Product Line: Nete

Model: BG-1000va

Production Country: China

Weight (kg): 3

Certifications: Eco Friendly

Color: black

Main Material: Metal
