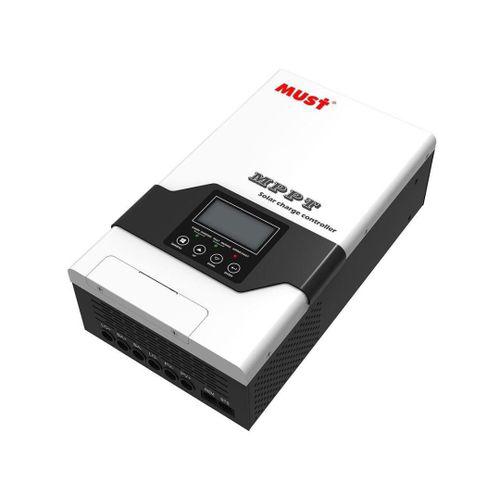

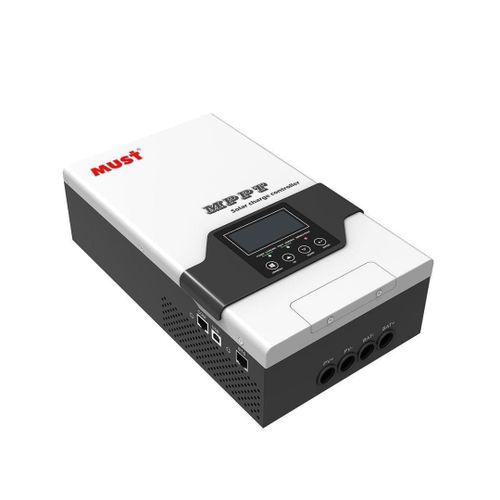

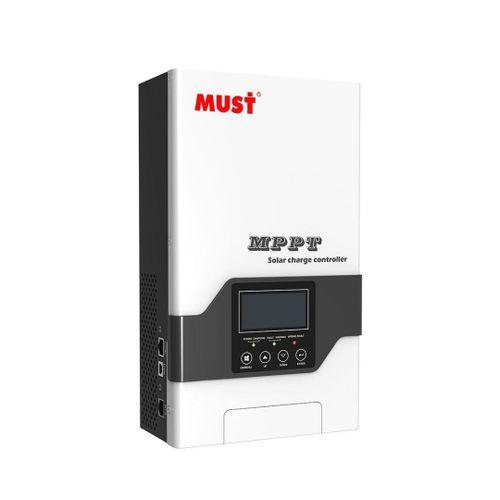

MUST 60A 245VDC MPPT Solar Charger Controller For 12V 24V 36V 48V Solar System Negotiable

Our Must 80A 245VDC MPPT (Maximum Power Point Tracking) Solar Charge Controller offers an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows customized battery recharging.

Maximum Input Power

12V - 940W

24V - 1880W

36V - 2820W

48V - 3760W

Key Features

• LCD display, easily operated on LCD screen

• Multi stage charging (3-stage charging , parallel charging and equalized charging function)

• BTS – Battery remote temperature sensor terminal

• Enable to charge Li-thium, Gel , lead-acid battery

• With RS485 & USB communication port

• Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit

What’s in the box

60A Charge Controller

User Manual

Communication Cable

Specifications

SKU: GE779GP69N8M8NAFAMZ

Product Line: Solar Planet Nigeria Limited

Model: PC18-6015F

Production Country: China

Size (L x W x H cm): 30 x 16 x 9.5 cm

Weight (kg): 3

Certifications: Eco Friendly

Color: White

Main Material: Aluminum

From the Manufacturer: <p>Experienced personnels only&nbsp;</p>

Care Label: <p><strong>PV Array&nbsp;</strong></p><p>12V (VBAT) 15~100V</p><p>24V (VBAT) 30~245V</p><p>36V (VBAT) 45~245V</p><p>48V (VBAT) 60~245V</p><p>&nbsp;</p><p>&nbsp;</p>
