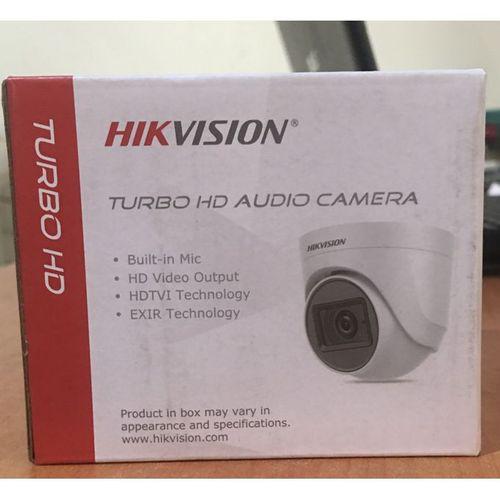

Hikvision 5MP HD DOME AUDIO CAMERA Negotiable

Description

5 MP coaxial audio camera

Enhanced safety with discreet and economical built-in microphone

Transmit audio over coaxial cable

EXIR 2.0: advanced infrared technology with 20 m IR distance

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera

Image Sensor5 MP CMOS

Max. Resolution2560 (H) × 1944 (V)

Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Day & NightICR

Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°

Signal SystemPAL/NTSC

Lens

Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens

Focal Length & FOV

2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7°

3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°

6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°

Lens MountM12


Image Parameters SwitchSTD/HIGH-SAT

Image SettingsBrightness, Sharpness, Mirror, Smart IR

Frame Rate

TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 4MP@30fps, 4MP@25fps

AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

CVBS: PAL/NTSC

Day/Night ModeAuto/Color/BW (Black and White)

Wide Dynamic Range (WDR)Digital WDR

White BalanceATW/MANUAL

AGCSupport

Interface

Video OutputSwitchable TVI/AHD/CVI/CVBS

General

Material

Plastic

DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)

Approx. 140.5 g (0.31 lb.)

Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)

CommunicationHIKVISION-C

LanguageEnglish

Power Supply

12 VDC ± 25%

Key Features

5 MP coaxial audio camera

Enhanced safety with discreet and economical built-in microphone

Transmit audio over coaxial cable

EXIR 2.0: advanced infrared technology with 20 m IR distance

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

What’s in the box

1CameraManual

Specifications

SKU: HI902CM40OVA9NAFAMZ

Product Line: Dawealth enterprise

Model: CCTV

Weight (kg): 0.2

Color: N/A
