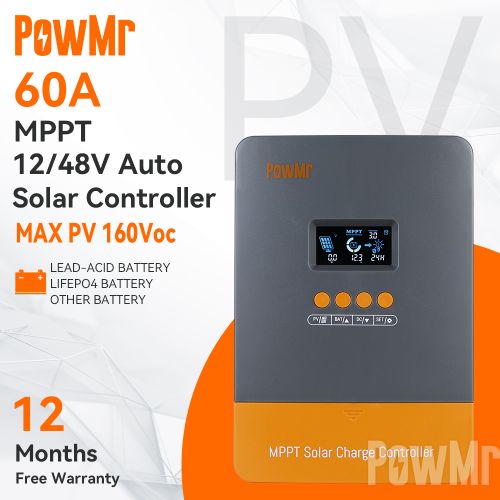

PowMr 60A MPPT Solar Charger Controller 12-48V Max PV 160VDC Negotiable

PowMr MPPT 60A Solar Charger Controller 12V 24V 36V 48V WithBlacklight LCD Regulator Max PV Input 160VDC Support Lithium Battery

• About Solar: Solar power systems offer a practical solution to the high cost of living and the energy crisis. It can provide a constant source of power support for a home or commercial premises. After installing a solar power system, you can utilize the solar panels on your own roof or open space to convert sunlight into electricity for various power needs.
• 1. Solar power systems offer an efficient and environmentally friendly solution when faced with the challenge of the rising cost of living. By utilizing solar energy, an inexhaustible natural resource, we can significantly reduce energy expenses for our homes and businesses.
• 2. As energy prices continue to rise, the financial strain of traditional energy sources has become a major issue for many households and businesses. However, the emergence of solar energy systems has brought a whole new approach to solving this dilemma. Solar panels convert sunlight into electricity, and when installed on a rooftop or open ground, they can provide a stable and reliable supply of electricity to homes and businesses. This not only drastically reduces reliance on traditional power supplies, but also effectively lowers electricity bills in the long run.
• 3. The benefits of choosing solar go beyond reducing energy costs. Solar systems are relatively simple to install and maintain, and while the initial investment is high, it can bring significant financial returns in the long run. With modern technology, such as the introduction of smart inverters and high-efficiency batteries, the performance and affordability of solar systems have been further enhanced, making them increasingly cost-effective.

Note:This solar charge controller is one of our best-selling products, which has been recognized by many customers for its stable performance, fast heat dissipation and low failure rate. If you have any questions about this product, you can contact me at any time, looking forward to your purchase.

• ⚫ Integrated Charging Presets
• The integrated charging modes include adaptive charging logic that is well suited for most battery types, such as liquid-rich lead-acid, sealed lead-acid and lithium batteries.
• ⚫ Flexible Applications
• Compatible with 12V/24V/36V/48V system voltages.
• ⚫ Multi-stage charging algorithm
• Multi-stage charging algorithms are specifically designed to optimize each charging cycle, as well as maintain charging for extended periods of time.
• ⚫ Maximum Power Point Tracking Technology
• Maximum Power Point Tracking (MPPT) technology will track the array's Maximum Power Point Voltage (Vmp) as it varies with weather conditions, ensuring that the maximum power is collected from the array throughout the day.
• ⚫ Efficient Charging Innovative MPPT technology with tracking efficiencies of up to 99% and peak conversion efficiencies of up to 98%; resulting in lower power consumption, less heat generation, and lower operating temperatures.
• lower operating temperatures.
• ⚫ Adaptive Boost Charging
• Adaptive Boost Charging monitors the battery's response during initial charging and automatically determines the duration of the boost phase to match the discharge level in each separate charging cycle. level, it automatically determines the length of the boost phase to match the discharge level in each separate charging cycle. This ensures that the battery is fully charged at any discharge level or capacity and avoids
• time-outs during the boost charging phase. (extends battery life)

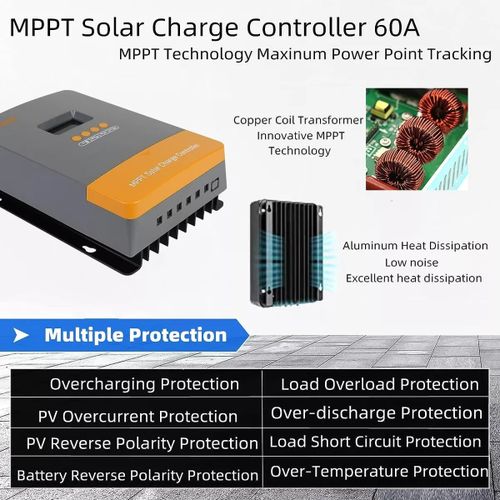

• ⚫ Long-lasting and safe
• a. Charge current limiting. Protects battery operation and extends battery life. b. PV array short circuit protection
• c. PV input overcurrent protection d. Load short circuit protection
• e. PV reverse connection protection. Will not cause damage to the controller. f. Battery reverse connection protection.
• g. Over temperature protection. When the temperature of the controller heat sink exceeds 65℃, the controller automatically reduces the charging current and shuts down when the temperature exceeds 80℃.
• ⚫ Silent operation
• Since there are no heat sink fans or moving parts, the device operates almost silently. The unit dissipates heat by natural convection.
• ⚫ Lithium-ion activation
• Compatible with lithium batteries, when the Battery Type parameter is set to Lithium Battery, the charge cycle will be changed accordingly to accommodate lithium battery charging. And. When the accessed lithium battery is in the protection state, the controller will activate the lithium battery with the energy from the solar panel at a current that does not exceed the lithium battery protection voltage and protection current range.

Specifications:

Model ：POW-M60-PRO

Type：MPPT

 Nominal voltage 12V 24V 36V 48V

Rated current 60A

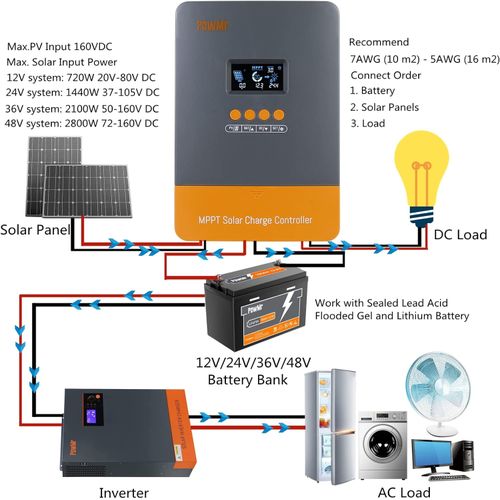

Max. PV input power ：

12V:720W

24V:1440W

36V:2160W

48V:2880W

System Voltage ：12V 24V 36V 48V

Rated load current:60A

Solar PV voltage ：160Voc

Selectable battery type ：Sealed and ventilated NiCd lithium battery User-defined voltage for other batteries

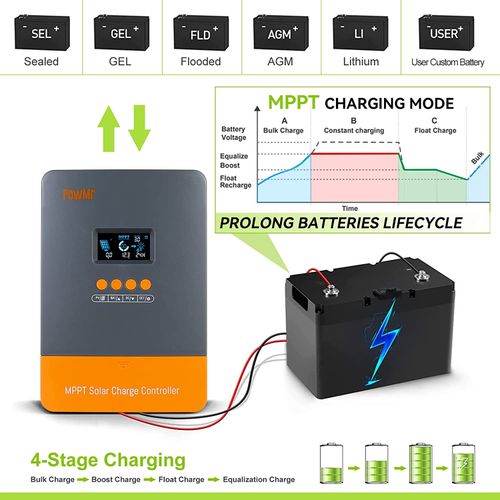

Charging 3 stages:

constant current (MPPT),

constant voltage (absorption voltage),

float charge.

Voltage overcharge protection

 System: 12V (15V)

System: 24V (30V)

System: 36V (45V)

System: 48V (60V)

Charge Controller Safety:

A.Ensure that the DC system is completely shut down/isolated before disconnecting any existing wiring and/or making new connections to the battery/DC system.

B.Use a flexible multi-stranded copper cable with sufficient cross-sectional area, align it with an appropriate fuse or circuit breaker; refer to section "2.4 Wiring Specifications and Circuit Breaker Type" for details.

C.Never connect the solar panel array to the controller without a battery. The battery must be connected first.

.

https://img.lazcdn.com/g/p/3bb5502779dbe17f24c3415bdcadbdd7.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1500px; width: 1500px;">

https://img.lazcdn.com/g/p/026ba8876a4ac6743d96e02ea5918b46.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1497px; width: 1500px;">

https://img.lazcdn.com/g/p/3901cbaf22ae4e90c1359119cd522a94.png_2200x2200q80.png_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; width: 950.014px; height: auto !important;">

https://img.lazcdn.com/g/p/452ccb35fa9fe0cd69fe0971f5260484.png_2200x2200q80.png_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; width: 950.014px; height: auto !important;">

https://img.lazcdn.com/g/p/3ae4720b1d4f9a74b4a5f034dd417137.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1200px; width: 1200px;">

https://img.lazcdn.com/g/p/51a3561a86d6587e18f8987d5d78e788.png_2200x2200q80.png_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 970px; width: 970px;">

https://img.lazcdn.com/g/p/21e337246c5ab14feec3b32a49d145b0.png_2200x2200q80.png_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1500px; width: 1500px;">

https://img.lazcdn.com/g/p/f2ab3e8354d5b511d7dac4fe96ea8de7.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1500px; width: 1500px;">

https://img.lazcdn.com/g/p/9092af088e1ebccc7f0d204bc05d40f5.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1451px; width: 1500px;">

https://img.lazcdn.com/g/p/4fa780235966911ad905229e7f0c0b11.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; width: 950.014px; height: auto !important;">

• 60A Solar Charge Controller
• 100% MPPT Technology
• 0 Layer,Easy Installation,Easy Setup
• Built-in DSP Controller With High Performance
• Automatic Switch For 12V/24V/36V/48V Battery Bank
• 3-Stage Charging Optimizes Battery Performance
• Overcharge Protection,Input PV Polarity Reverse Protection,Output limited Current Protection
• Over-Temperature Protection
• Troubleshooting Promotion Function.
• Suitable For Battery Types Such As Sealed Lead Acid, Lithium Battery
• Easy To Be Mounted

• Solar Charge Controller x 1
• English manual x 1

SKU: PO442GP2UHJ9GNAFAMZ

Product Line: PowMr

Model: POW-M60-PRO

Production Country: China

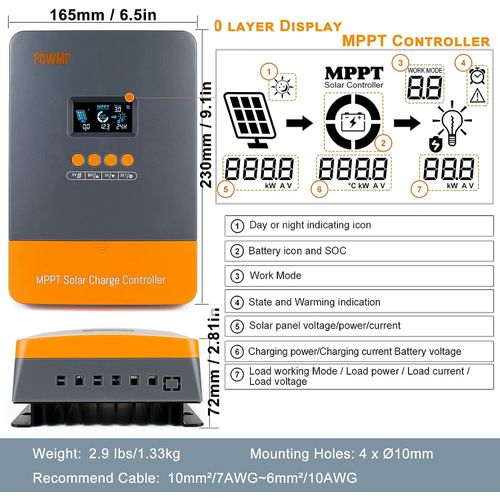

Size (L x W x H cm): 28 x 20 x 11

Weight (kg): 1.65

Certifications: Eco Friendly

Color: orange

Main Material: Metal

Product Type: Inverter

From the Manufacturer: 1

Care Label: 1
