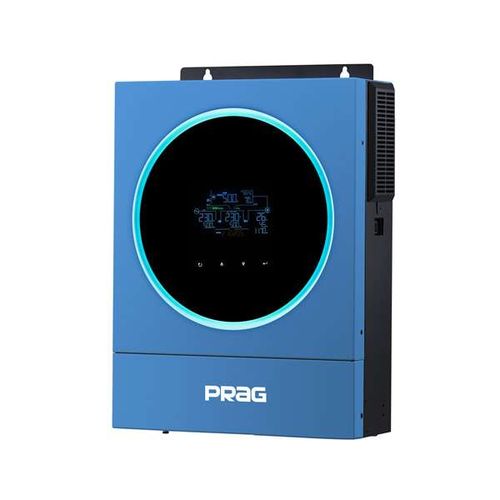

Prag 3.6KW PLUS SOLAR INVERTER-VT INVERTER Negotiable

3.6KW/48V Hybrid Inverter (4000W-MPPT) Features

• Pure Sine wave Solar Inverter
• Inbuilt MPPT Solar Charger
• Customizable status LED ring with RGB lights
• Touchable button with large 4.3 colored LCD
• Built-in WiFi for mobile monitoring (Android/iOS App available)
• Supports USB On-the-Go function
• Data log events stored in the Inverter
• Reserved communication port (RS485, CAN-BUS or RS232) for BMS
• Battery independent design
• Battery equalization extends lifecycle
• User-friendly LCD operation
• Enhanced charging power
• Optional anti-dusk kit

Inverter Output

Model   3.6K-24

Power Rating     3600W

 INPUT

Voltage 230 VAC

Selectable Voltage Range             170 – 280 VAC (For Personal Computer);

90-280 VAC (For Home Appliances)

Frequency Range             50/60 Hz (Auto Sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)         230 VAC ±5%

Efficiency (Peak)               90% – 93%

Surge Power      7200 VA

Transfer Time    15 ms (For Personal Computers); 20 ms (For Home Appliances)

Waveform          Pure Sine Wave

BATTERY

Battery Voltage 24 VDC

Floating Charge Voltage 27 VDC

Overcharging Protection               33 VDC

SOLAR CHARGER & AC CHARGER

Solar Charger Type          MPPT

Maximum PV Array Open Circuit Voltage               500 VDC

Maximum PV Array Power           4000 W

MPPT Range @ Operating Voltage            120 VDC ~450 VDC

Maximum Solar Charge Current 120 A

Maximum AC Charge Current     100 A

Maximum Charge Current            120 A

SKU: PR964CA5WX8ARNAFAMZ

Weight (kg): 10
