PowMr MPPT Solar Charge Controller 60A 12/24/36/48V Negotiable
₦145,800
Description
Features
PowMr Advanced 60Amps MPPT solar charge - 2022 Model

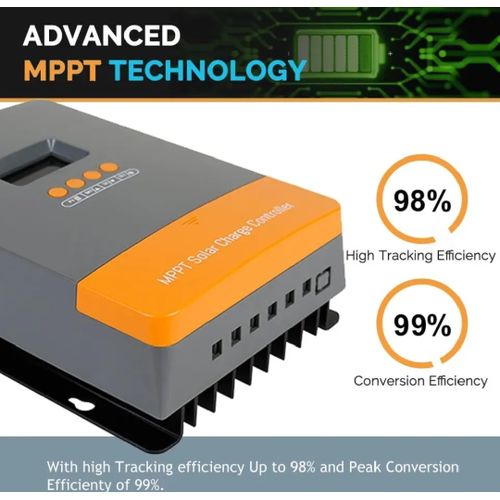

Controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.

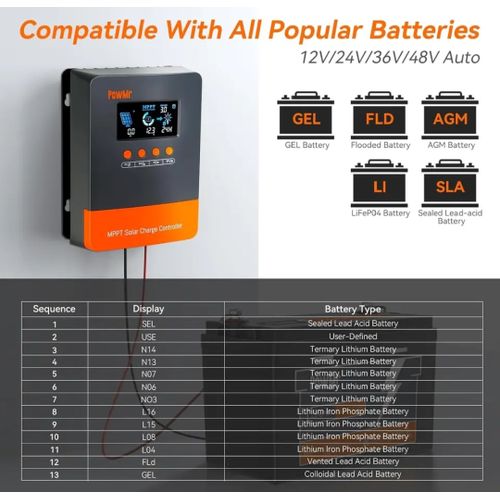

Features It comes with a number of outstanding features, such as: * MPPT 60A solar charge controller * 100% MPPT technology * 0 Layer, easy installation, easy set up * Built-in DSP controller with high performance * Automatic switch for 12V/24V/36V/48V battery bank * 3-stage charging optimizes battery performance * Overcharge protection, Input PV polarity reverse protection, Output limited current protection, * Over-temperature protection * Troubleshooting promotion function. * Suitable for battery types such as sealed lead acid, vented gel, and lithium battery, etc * Easy to be mounted
Technical Specification ModelsPOW-M60-PROCharging modeMPPT Maximum power point tracking automaticallyCharging3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating chargeSystem typeDC12V/24V/36V/48V Recognition automaticallySystem voltage automatic recognition1 2V system (DC9V-DC15V)24V system (DC18V-DC29V)36V system (DC30V-DC39V)48V system (DC40V〜DC60V)PV utilization>99%Input specificationVOC from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it's the best efficiency.)12V system (DC20V-DC80V)24V system (DC37V-DC105V)36V system (DC50V-DC160V)48V system (DC72V - DC160V)The maximum PV input voltage (Voc)DC190V(The controller can't work at this voltage of long duration that will break controller. Please refer to the Input voltage from PV.)The maximum PV input power (The total power rated of PV can't be over this watt that will break the controller.)12V system (720W)24V system (1440W)36V system (2100W)48V system (2800W)Output specificationSelectable battery type(default is Sealed)Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)Absorption Charging VoltageRefer to Batteries charging referenceFloating Charging VoltageRefer to Batteries charging referenceOvercharging protection voltage12V system (15V)24V system (30V)36V system (45V)48V system (60V)Rated output current60A
Controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.
Features It comes with a number of outstanding features, such as: * MPPT 60A solar charge controller * 100% MPPT technology * 0 Layer, easy installation, easy set up * Built-in DSP controller with high performance * Automatic switch for 12V/24V/36V/48V battery bank * 3-stage charging optimizes battery performance * Overcharge protection, Input PV polarity reverse protection, Output limited current protection, * Over-temperature protection * Troubleshooting promotion function. * Suitable for battery types such as sealed lead acid, vented gel, and lithium battery, etc * Easy to be mounted
Technical Specification ModelsPOW-M60-PROCharging modeMPPT Maximum power point tracking automaticallyCharging3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating chargeSystem typeDC12V/24V/36V/48V Recognition automaticallySystem voltage automatic recognition1 2V system (DC9V-DC15V)24V system (DC18V-DC29V)36V system (DC30V-DC39V)48V system (DC40V〜DC60V)PV utilization>99%Input specificationVOC from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it's the best efficiency.)12V system (DC20V-DC80V)24V system (DC37V-DC105V)36V system (DC50V-DC160V)48V system (DC72V - DC160V)The maximum PV input voltage (Voc)DC190V(The controller can't work at this voltage of long duration that will break controller. Please refer to the Input voltage from PV.)The maximum PV input power (The total power rated of PV can't be over this watt that will break the controller.)12V system (720W)24V system (1440W)36V system (2100W)48V system (2800W)Output specificationSelectable battery type(default is Sealed)Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)Absorption Charging VoltageRefer to Batteries charging referenceFloating Charging VoltageRefer to Batteries charging referenceOvercharging protection voltage12V system (15V)24V system (30V)36V system (45V)48V system (60V)Rated output current60A
Key Features
This is the lastest version of all existing PowMr model. PV conversion efficiency of 99%.
What’s in the box
1 * 60A mppt controllerManual
Specifications
SKU: PO442GP3ONMMBNAFAMZ
Product Line: Vanchals Integrated Global Ventures
Model: POW-MB60-PRO
Production Country: China
Weight (kg): 1.4
Certifications: Eco Friendly
Color: Grey/Orange
Main Material: N/A
From the Manufacturer: PowMr Industrial Co
Care Label: Pls do exceed 48V
Powered by Froala Editor
