Description
Features
Features

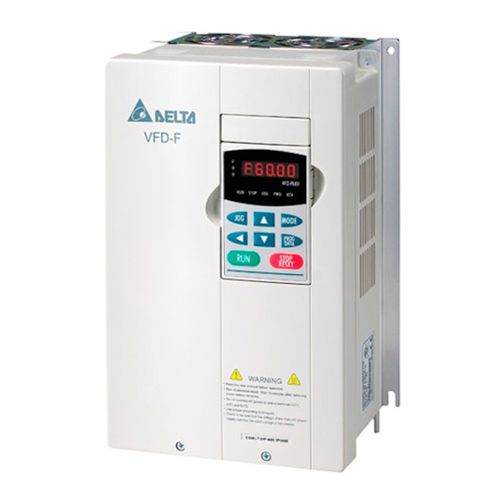

Variable Torque AC Drive. Specifically designed for medium and high horsepower fan and pump applications. The F series offers an adjustable V/F curve and automatic voltage regulation. It also offers the capability of connecting and running consecutively four motors. A set of motors consisting of 1 variable-speed motor and 3 constant-speed motors is allowable.
Specifications
Output frequency 0.1 ~ 120 Hz
Built-in MODBUS communication, baud rate up to 38400 bps
Support communication module (DN-02, LN-01, PD-01)
Specifications
Item Number: VFD007F43A
Series: VFD-F
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP (VT): 1 Horsepower
Amps (VT): 2.7 Amps
Input Phase: 3

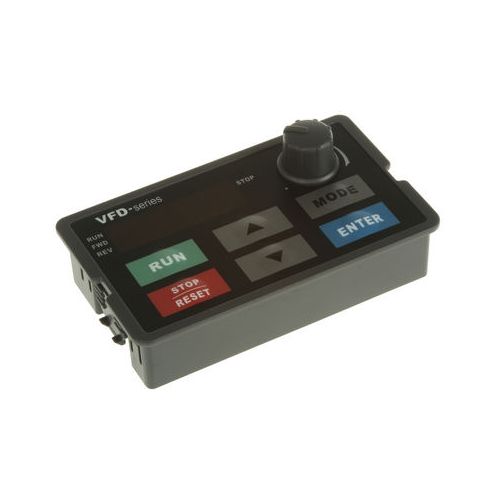

Operator Controls: Keypad Included
Max. Frequency: 120 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: V/Hz (Scalar)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Included
Enclosure Rating: IP20
Key Features
Features
Variable Torque AC Drive. Specifically designed for medium and high horsepower fan and pump applications. The F series offers an adjustable V/F curve and automatic voltage regulation. It also offers the capability of connecting and running consecutively four motors. A set of motors consisting of 1 variable-speed motor and 3 constant-speed motors is allowable.
Specifications
SKU: GE779IP4AB3KWNAFAMZ
Product Line: Day Star Global
Model: Vfd007f43a
Weight (kg): 3
Color: white
